Dimension Recessed (Total): 1000 x 80 X 30 mm
-Depth : 29mm
-Hole Width : 68mm
-End Cap Wing Protrusion : 5mm

Read More

Included:
Line8 Model S Surface / R Recessed with 1000 mm Length
Line8 Dual Port Screw Fasten Terminal (Right/Left)
Line8 Model S/R End Caps
Line8 International Premium Adaptor (2pcs)
FREE DELIVERY AND INSTALLATION (KHUSUS DAERAH JAKARTA)

Model Surface Specification:

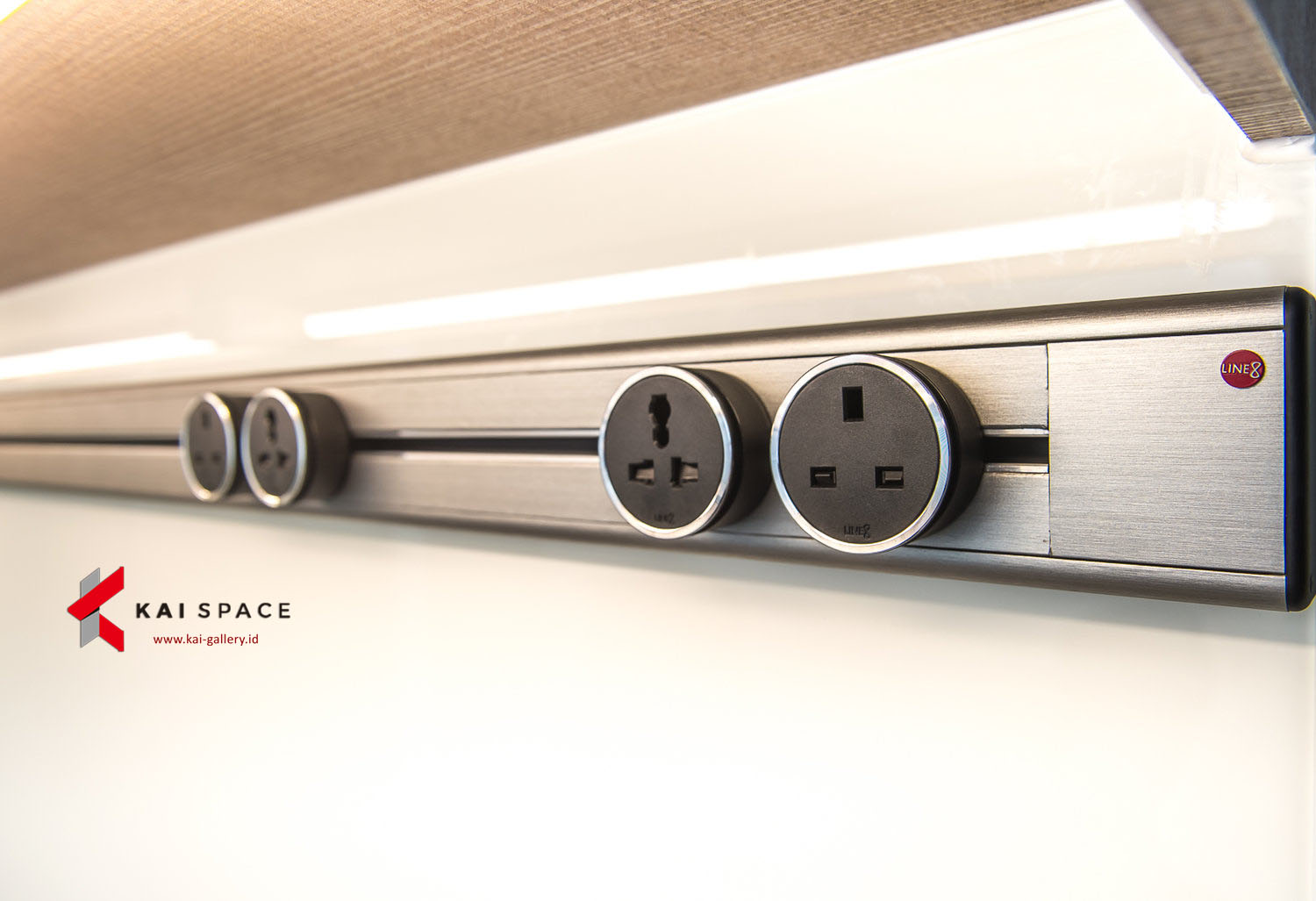

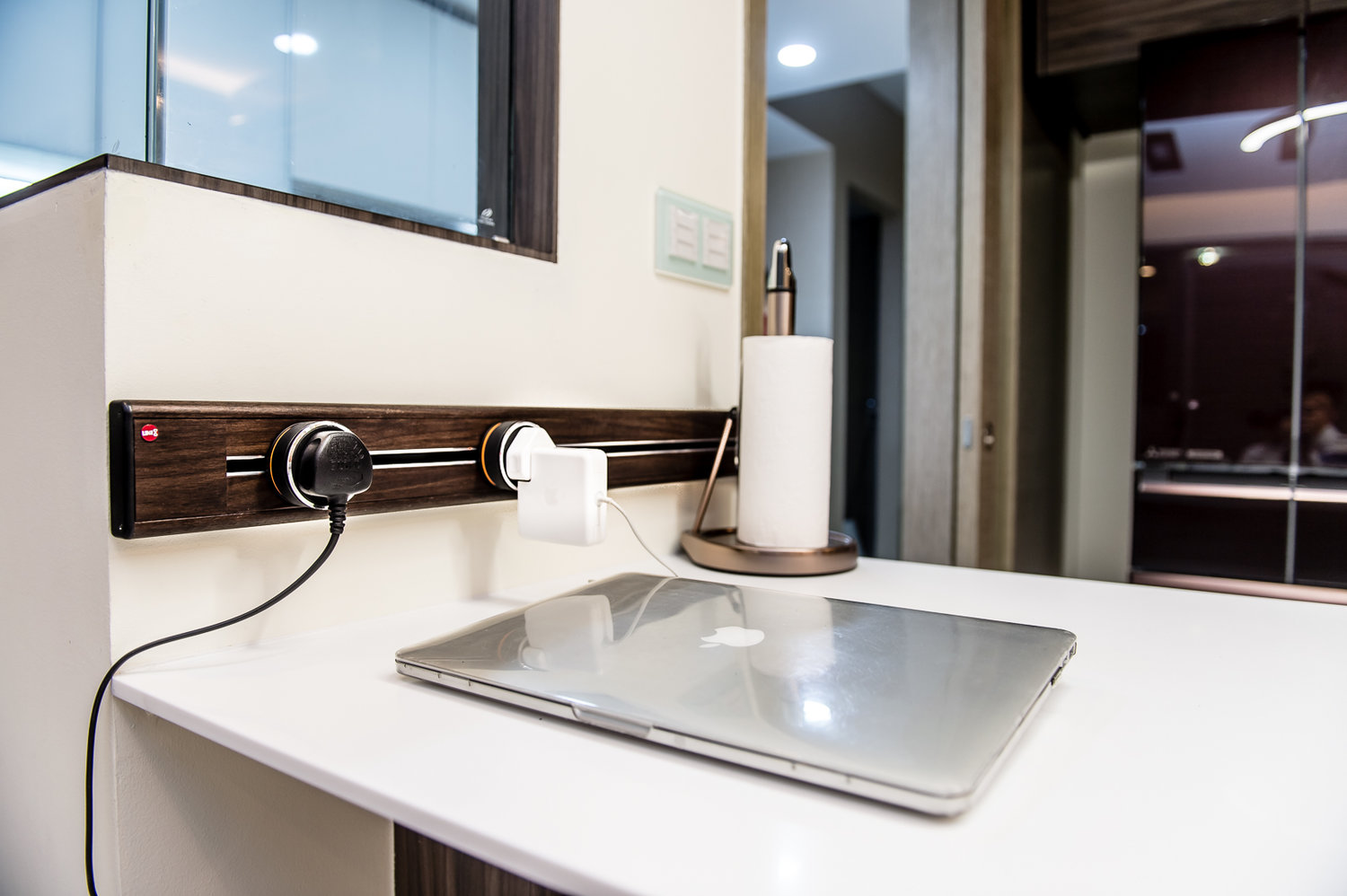

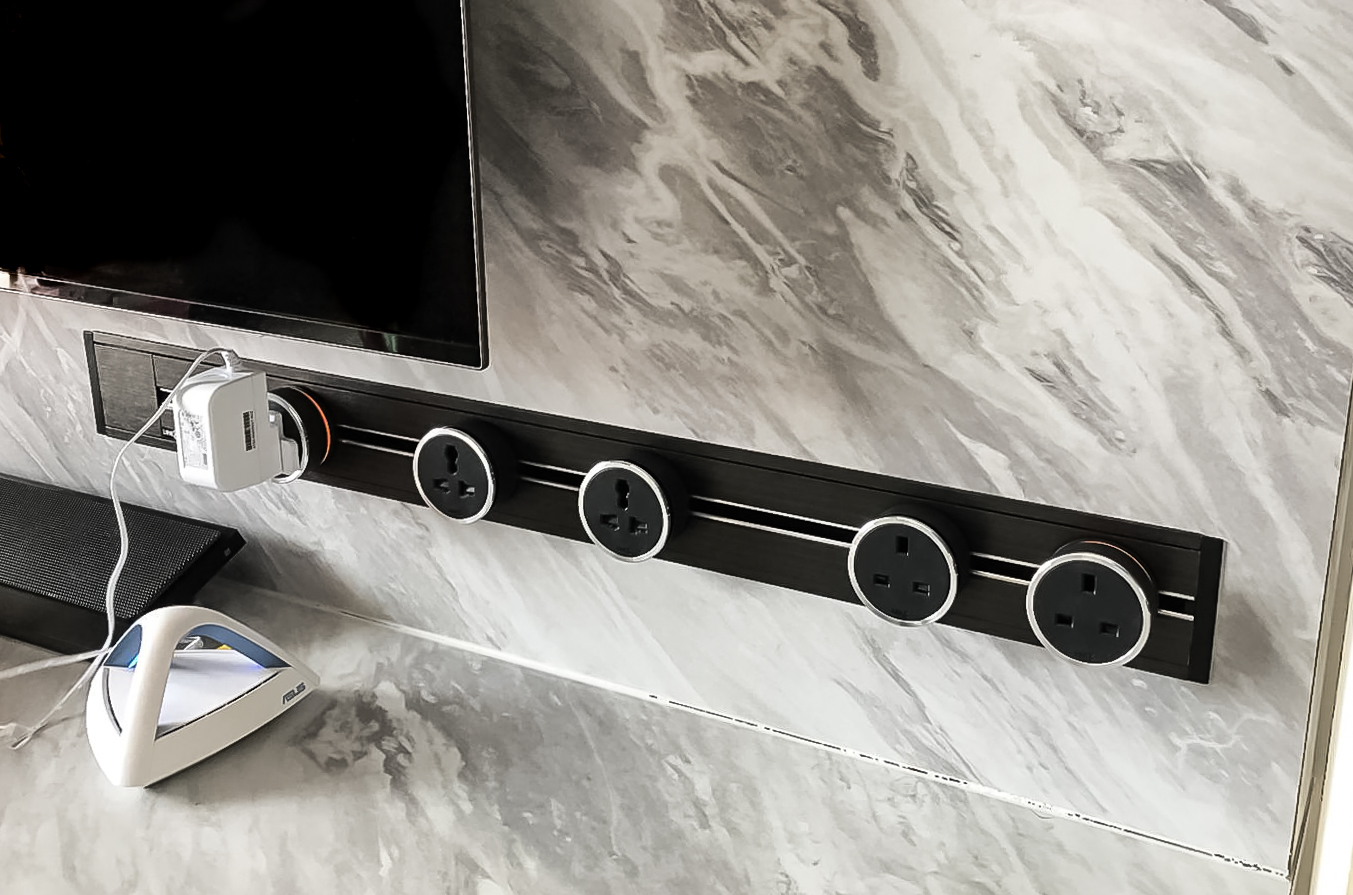

Mount onto walls. Upgrade over conventional wall sockets. Our Model S is suitable for almost every use case. Bring power anywhere, at any location.
Rated Current : 32A~
Rated Voltage : 250V~
Operating Temperature : -5C to 40C
Frequency : 50/60Hz
Relative Humidity : 0% to 95%
Environmental Characteristic : Indoor Use
Fire Resistance : UL94 HB
Water Resistance : IP3X
Materials : Extruded Aluminium Enclosure
Machined Copper Alloy Connectors
Pure Annealed Copper Busbar
Modified Polyphenylene Ether Insulation
PA Polyamide Terminal Structures
PC Polycarbonate Terminal Structures
Glass Reinforced ABS End Caps
Glass Reinforced PBT Terminal Housing

Dimension Surface (Total) : 1000 x 86 X 25 mm
-End Cap thickness : 5mm
-Face edge radius : 9mm
-Back edge radius : 4mm

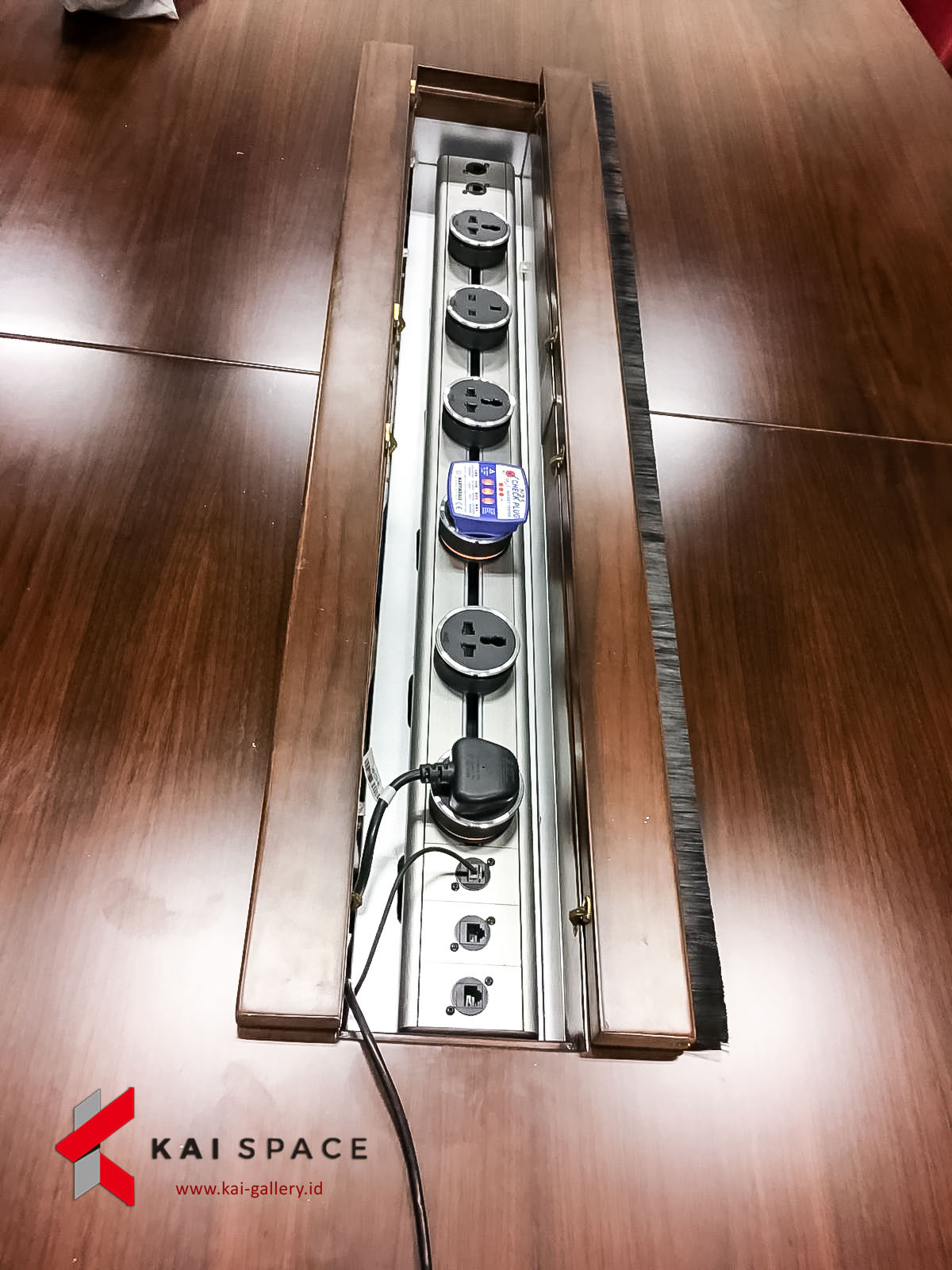

Dimension Recessed (Total): 1000 x 80 X 30 mm
-Depth : 29mm
-Hole Width : 68mm
-End Cap Wing Protrusion : 5mm
